Flexible steel barriers that let the water through and hold the solid material in the channel, and shallow landslide barriers on the slope. Catchment, channel gradient and the mobilisable solid volume are measured; the barrier sequence and levels are set accordingly.
Systems

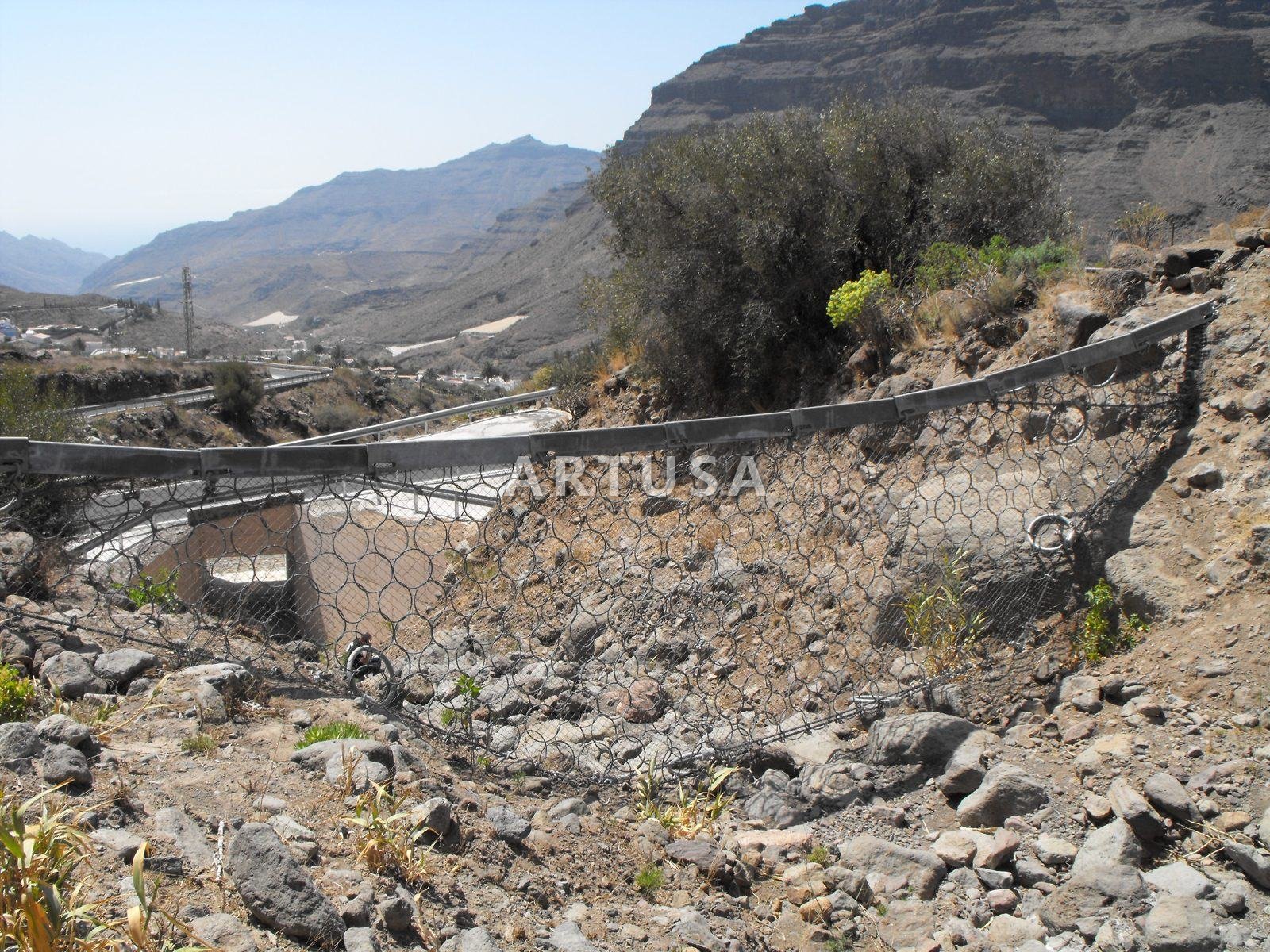

- UX / VX debris flow barrierPermeable check dam.Geobrugg, imported
- SL shallow landslide barrierGeobrugg, imported
- Ring net panelMade by Artusa
The problem
A cloudburst collects into the channel of a steep, narrow catchment within minutes. The water does not come alone: it drags the loose bed material, the mass falling from bank failures, the soil cover torn off by shallow landslides and tree trunks. As the solid fraction grows the behaviour changes; this is no longer a flood carrying stones but a mass flow pushing a dam of boulders and timber in front of it. That mass blocks a culvert in minutes, the water leaves the channel, and the real damage happens there. At risk are stream crossings, road culverts, the edges of settlements and debris fans.
The warning signs are read in the channel: very large boulders that do not resemble each other, fresh scour on the banks, mud bands marking the old flow surface and lateral levees along the channel say that debris flows have passed before. Timber piled at a culvert inlet and scour at a bridge pier belong to the same family. A flood and a debris flow load a structure differently and are designed differently.
How we decide
What we measure and compile: catchment area, gradient change along the channel, channel width and cross-section, an estimate of the mobilisable solid volume, a count of source areas, timber transport potential, rainfall return data, the opening and level of the structure below, and sound rock for anchoring.
| Observation | Criterion | Decision |
|---|---|---|
| Low channel gradient, sand and gravel | Limited solid fraction | Channel regulation and a settling basin |
| Steep channel carrying boulders and timber | Signs of debris flow | Permeable flexible barrier: passes water, holds solids |
| Narrow rock channel, both banks anchorable | Lateral anchor capacity sufficient | Post-free (VX) type |
| Wide channel, intermediate support needed | Cable forces cannot be carried in one span | Type with support posts (UX) |
| Dense shallow landslide scars on the source slope | Mass can be held before it reaches the channel | Shallow landslide barrier (SL) on the slope |
| One barrier's volume insufficient | Estimated solid volume larger | Staggered barrier series, spacing and level planning |
Two quantities govern the design: the volume a barrier can retain and the load the flow will impose. The volume is chosen against the estimated solid volume; in a staggered series the upper barrier reduces the load on the lower one. The load depends on the density, velocity and front height of the flow. These systems are designed for a slowly developing, sustained load rather than a sudden impact.
System family
| System | When it fits | Source |
|---|---|---|
| UX type debris flow barrier | Wide channel, intermediate support needed | Geobrugg, imported |
| VX type debris flow barrier | Narrow rock channel, anchored on both banks | Geobrugg, imported |
| SL shallow landslide barrier | On the source slope, before the mass reaches the channel | Geobrugg, imported |
| Ring net panel | Panels and reinforcement made to size | Made by Artusa |
| Lateral anchors, cable network, foundations | Load-bearing components of every type | Installed by Artusa |
| Channel regulation and toe fill | Regime correction together with the barrier | Installed by Artusa |
Unlike rockfall barriers, there is no harmonised assessment basis for debris flow barriers; the design relies on full-scale field tests and the calculation methods derived from them. Asking for the calculation report and the test basis in a bid is more meaningful than asking for a certificate. Corrosion protection is specified under EN ISO 1461 and EN 10244-2.
Installation
The working window in the channel sets the sequence: the dry season is chosen, rainfall is watched, and an exit plan for the crew is in place. Then come the setting-out of lateral anchors, drilling and grouting, foundation works, tensioning of the cable network, connection of the panels and installation of the brake elements. Without toe protection on the channel bed, material passes under the barrier; this detail is missed in most cases.
Control points: drilling length and grouting record, direction of the lateral anchors, cable pre-tension, panel overlap, closure of the basal opening, the free volume on the upstream side, and the barrier crest level against culvert and bridge levels.
Acceptance and maintenance
Measured at handover: as-built anchor positions and pull-out test results, cable diameters and pre-tension, barrier opening and crest level, the geometric calculation of the retention volume, corrosion protection documents and the calculation report. The free volume on the upstream side is recorded with photographs and a section; that is the maintenance benchmark.

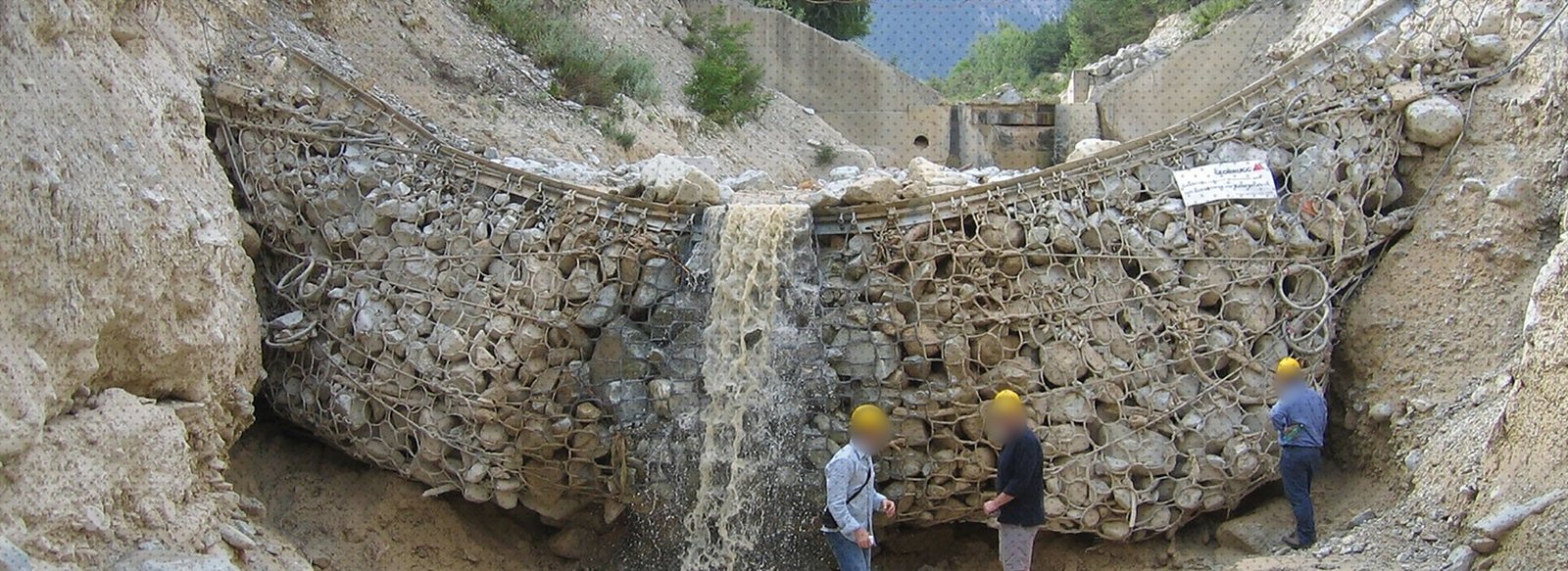

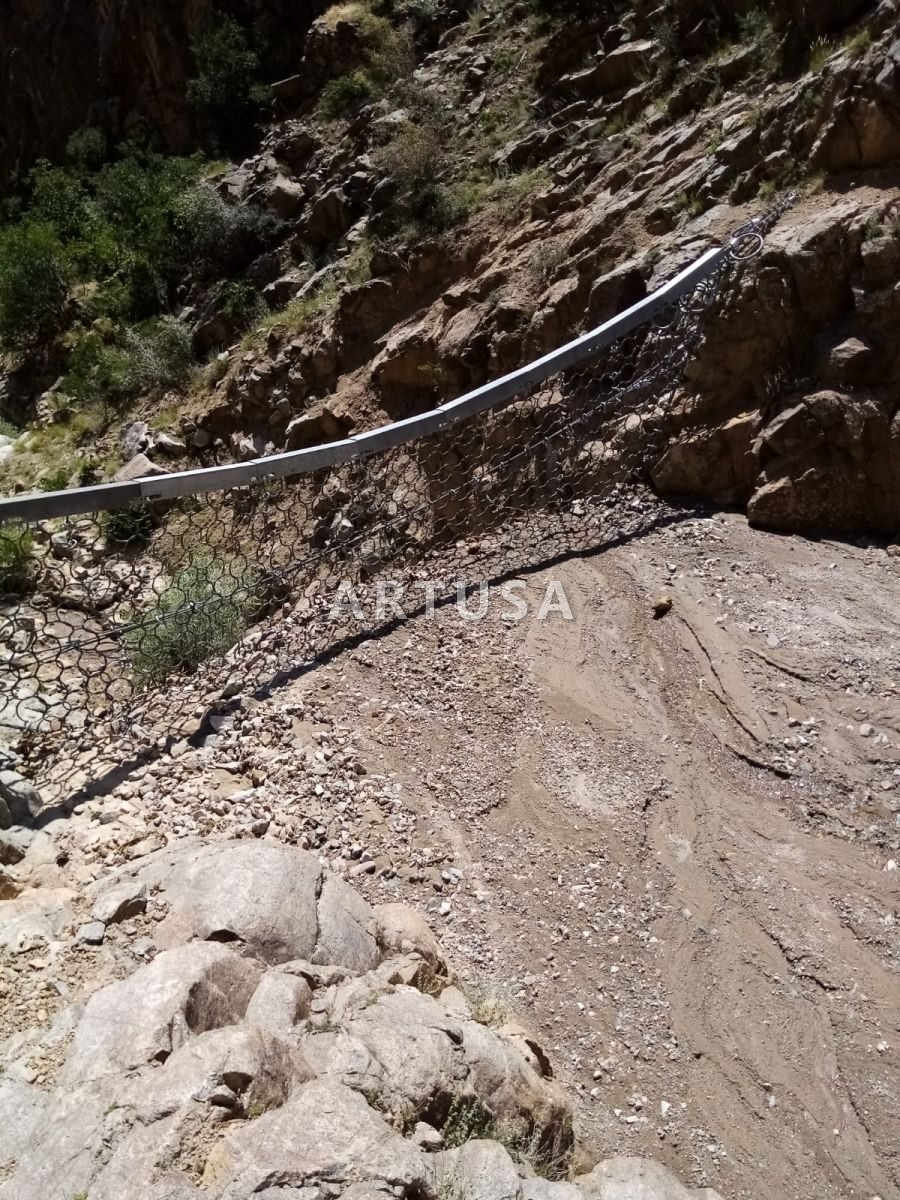

A debris flow barrier that has filled has done its job, and it is useless in the next event unless it is emptied. After every significant rainfall: a filling check, an emptying programme if it has filled, a review of cables and brake elements, a measurement of bed scour. Where filling can be monitored remotely, site visits decrease.
Frequently asked
- Are a flood and a debris flow the same thing? No; the load carried, the permeability and the retention logic differ. Retention volume and front load are calculated separately.
- What happens when the barrier fills? A filled barrier has met that event; it must be emptied for the next one. The emptying plan and its cost should be budgeted at the start.
- How many barriers are needed? The number follows from the ratio of the estimated solid volume to one barrier's retention volume, and from the anchor points available.
